控制器/驅動器
步進電機控制器/CC-Link直接輸入型 LECPMJ
-
?對應CC-Link Ver1.10
?有外部數據讀取功能
?可通過PLC觸摸屏（顯示器）監視位置與速度
?可通過PLC觸摸屏（顯示器）編輯步進電機
※LECPMJ系列于2021年1月停止生產。
請選擇JXCM1系列。
| 型號 | 系列 | 對應電機 | 電源電壓 | 現場總線 |
|---|---|---|---|---|
| CC-Link 直接輸入型 | LECPMJ | 步進電機 （帶編碼器 DC24V） | DC24V ±10% | CC-Link Ver1.10 |
產品特點
■CC-Link Ver. 1.10 compliant
■External data import function

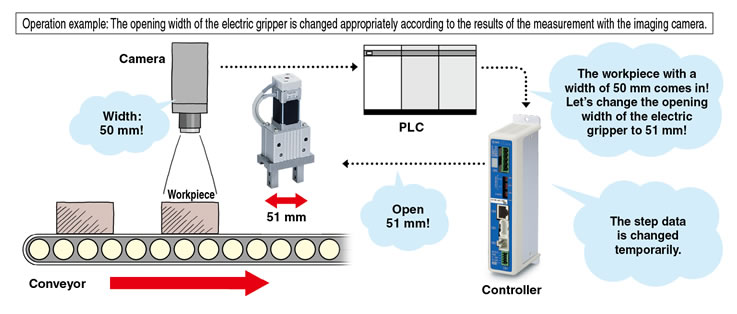

■External data import function
- The step data can be rewrite temporarily by feeding back external information to the PLC.
- 64 or more data points can be defined with the 3 types of data import modes.

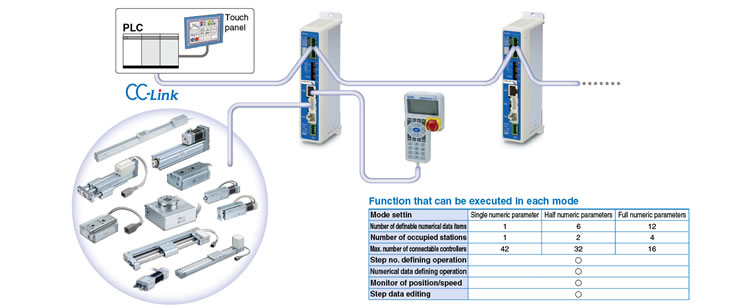

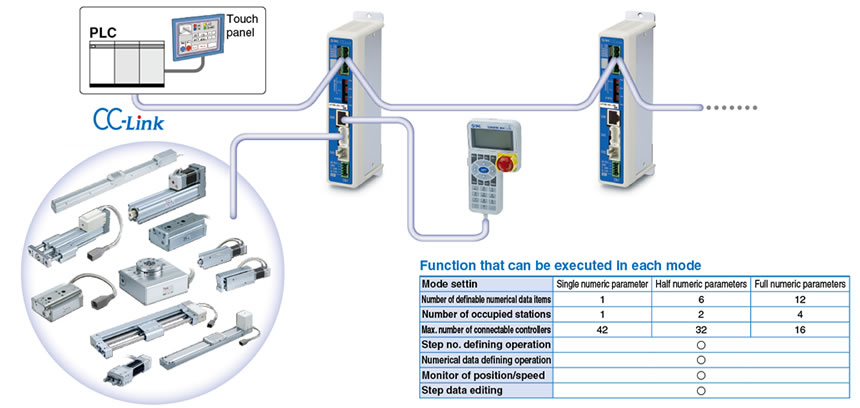

- 3 types of data import modes
(1)Single numeric parameter (Number of occupied stations: 1): Movement MOD (movement mode) and another parameter item are changed.
(2)Half numeric parameters (Number of occupied stations: 2): Up to 6 parameter items are changed at once.
(3)Full numeric parameters (Number of occupied stations: 4): Up to 12 parameter items are changed at once.
■Position and speed can be monitored by the PLC touch panel (display).
■Step data can be edited from the PLC touch panel (display).
(Except in the case of the single numeric parameter)
■Step data can be edited from the PLC touch panel (display).
(Except in the case of the single numeric parameter)
